wxbs_benchmark

This package implements evaluation protocols for the WxBS and EVD datasets: - PCK for correpondence estimates - recall on ground truth correspondences given the estimated fundamental matrix - mean average accuracy given the estimated homography (for EVD)

Install

pip install wxbs_benchmark

How to use

Task 1: fundamental matrix estimation

I will show you how to benchmark a simple baseline of OpenCV SIFT + MAGSAC++ below.

import numpy as np
import cv2
import kornia.feature as KF
import torch
from kornia_moons.feature import *
from tqdm import tqdm
from wxbs_benchmark.dataset import *
from wxbs_benchmark.evaluation import *
import matplotlib.pyplot as plt


def estimate_F_SIFT(img1, img2):
    det = cv2.SIFT_create(8000, contrastThreshold=-10000, edgeThreshold=10000)
    kps1, descs1 = det.detectAndCompute(img1, None)
    kps2, descs2 = det.detectAndCompute(img2, None)
    snn_ratio, idxs = KF.match_snn(torch.from_numpy(descs1),
                           torch.from_numpy(descs2), 0.9)
    tentatives = cv2_matches_from_kornia(snn_ratio, idxs)
    src_pts = np.float32([ kps1[m.queryIdx].pt for m in tentatives ]).reshape(-1,2)
    dst_pts = np.float32([ kps2[m.trainIdx].pt for m in tentatives ]).reshape(-1,2)
    F, _ = cv2.findFundamentalMat(src_pts, dst_pts, cv2.USAC_MAGSAC, 0.25, 0.999, 100000)
    return F


Fs = []
subset = 'test'
dset = WxBSDataset('.WxBS', subset=subset, download=True)
for pair_dict in tqdm(dset):
    Fs.append(estimate_F_SIFT(pair_dict['img1'],
                         pair_dict['img2']))
result_dict, thresholds = evaluate_Fs(Fs, subset)

100%|███████████████████████████████████████████| 32/32 [00:11<00:00,  2.67it/s]

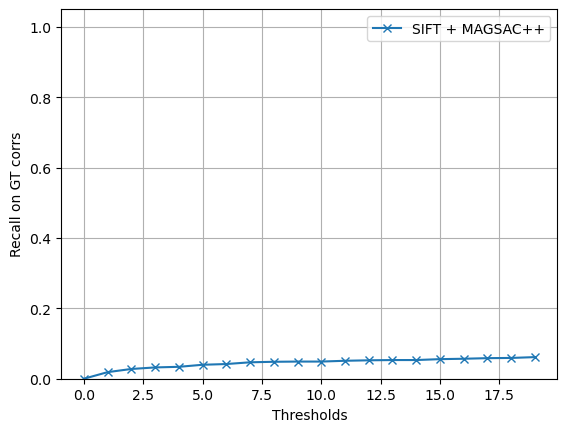

plt.figure()
plt.plot(thresholds, result_dict['average'], '-x')
plt.ylim([0,1.05])
plt.xlabel('Thresholds')
plt.ylabel('Recall on GT corrs')
plt.grid(True)
plt.legend(['SIFT + MAGSAC++'])

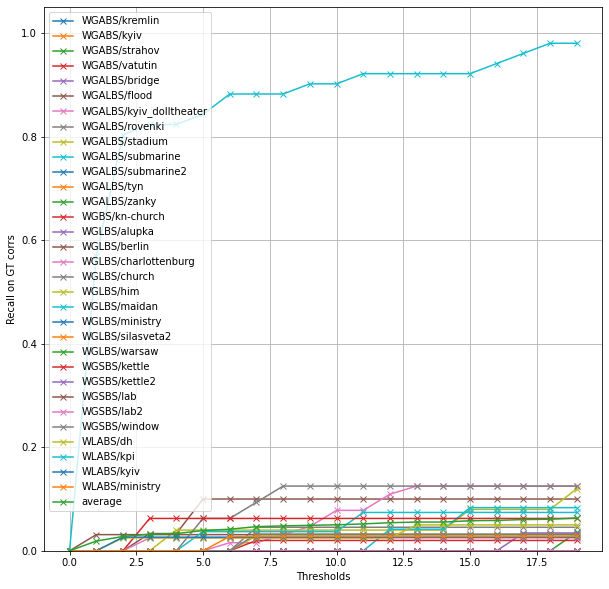

We can also check per-image-pair results

plt.figure(figsize=(10,10))
plt.ylim([0,1.05])
plt.xlabel('Thresholds')
plt.ylabel('Recall on GT corrs')
plt.grid(True)


for img_pair, recall in result_dict.items():
    plt.plot(thresholds, recall, '-x', label=img_pair)

plt.legend()

/opt/homebrew/Caskroom/miniforge/base/envs/python39/lib/python3.9/site-packages/ipykernel/ipkernel.py:283: DeprecationWarning: `should_run_async` will not call `transform_cell` automatically in the future. Please pass the result to `transformed_cell` argument and any exception that happen during thetransform in `preprocessing_exc_tuple` in IPython 7.17 and above.
  and should_run_async(code)

F-estimation benchmark results

I have evaluated several popular methods in this Colab

Here is the resulting graphs.

If you are interested in adding your methods - open an issue.

Task 2: finding the correspondence in image 2, given query point in image 1

Check this Colab for an example of running COTR on for the correspondence estimation given the query points.

Task 3: homography estimation on EVD

import numpy as np
import cv2
import kornia.feature as KF
import kornia as K
import torch
from kornia_moons.feature import *
from tqdm import tqdm
from wxbs_benchmark.dataset import *
from wxbs_benchmark.evaluation import *
import matplotlib.pyplot as plt


def estimate_H_DISK_LG(img1, img2):
    device = torch.device('cpu')
    config = {"depth_confidence": -1, "width_confidence": -1}
    lg = KF.LightGlueMatcher("disk", config).to(device=device).eval()
    num_features = 2048
    disk = KF.DISK.from_pretrained("depth").to(device)
    timg1 = K.image_to_tensor(img1, False).float()
    if timg1.shape[1] == 1:
        timg1 = K.color.grayscale_to_rgb(timg1)
    timg1 = K.geometry.resize(timg1, (600, 800), antialias=True).to(device)
    timg2 = K.image_to_tensor(img2, False).float()
    if timg2.shape[1] == 1:
        timg2 = K.color.grayscale_to_rgb(timg2)
    timg2 = K.geometry.resize(timg2, (600, 800), antialias=True).to(device)

    features1 = disk(timg1, num_features, pad_if_not_divisible=True)[0]
    features2 = disk(timg2, num_features, pad_if_not_divisible=True)[0]

    kps1, descs1 = features1.keypoints, features1.descriptors
    kps2, descs2 = features2.keypoints, features2.descriptors

    lafs1 = KF.laf_from_center_scale_ori(kps1[None], 96 * torch.ones(1, len(kps1), 1, 1, device=device))
    lafs2 = KF.laf_from_center_scale_ori(kps2[None], 96 * torch.ones(1, len(kps2), 1, 1, device=device))
    dists, idxs = lg(descs1, descs2, lafs1, lafs2, hw1=timg1.shape[2:], hw2=timg2.shape[2:])
    #snn_ratio, idxs = KF.match_smnn(descs1, descs2, 0.98)
    idxs = idxs.detach().cpu().numpy()

    src_pts = kps1.detach().cpu().numpy()[idxs[:,0]].reshape(-1,2)
    src_pts[:, 0] *= (img1.shape[1] / float(timg1.shape[3]) )
    src_pts[:, 1] *= (img1.shape[0] / float(timg1.shape[2]) )

    dst_pts = kps2.detach().cpu().numpy()[idxs[:,1]].reshape(-1,2)
    dst_pts[:, 0] *= (img2.shape[1] / float(timg2.shape[3]) )
    dst_pts[:, 1] *= (img2.shape[0] / float(timg2.shape[2]) )
    try:
        H, _ = cv2.findHomography(src_pts, dst_pts, cv2.USAC_MAGSAC, 0.5, 0.999, 100000)
    except:
        H = np.eye(3)
    if H is None:
        H = np.eye(3)
    return H


Hs = []

dset = EVDDataset('.EVD',  download=True)
for pair_dict in tqdm(dset):
    with torch.inference_mode():
        Hs.append(estimate_H_DISK_LG(pair_dict['img1'],
                                     pair_dict['img2']))

result_dict, thresholds = evaluate_Hs(Hs)

  0%|                                                    | 0/15 [00:00<?, ?it/s]  7%|██▉                                         | 1/15 [00:01<00:26,  1.90s/it] 13%|█████▊                                      | 2/15 [00:03<00:23,  1.80s/it] 20%|████████▊                                   | 3/15 [00:05<00:20,  1.74s/it] 27%|███████████▋                                | 4/15 [00:07<00:19,  1.73s/it] 33%|██████████████▋                             | 5/15 [00:08<00:16,  1.66s/it] 40%|█████████████████▌                          | 6/15 [00:10<00:15,  1.72s/it] 47%|████████████████████▌                       | 7/15 [00:12<00:13,  1.69s/it] 53%|███████████████████████▍                    | 8/15 [00:13<00:11,  1.71s/it] 60%|██████████████████████████▍                 | 9/15 [00:15<00:10,  1.71s/it] 67%|████████████████████████████▋              | 10/15 [00:17<00:08,  1.71s/it] 73%|███████████████████████████████▌           | 11/15 [00:18<00:06,  1.65s/it] 80%|██████████████████████████████████▍        | 12/15 [00:20<00:05,  1.84s/it] 87%|█████████████████████████████████████▎     | 13/15 [00:22<00:03,  1.79s/it] 93%|████████████████████████████████████████▏  | 14/15 [00:24<00:01,  1.75s/it]100%|███████████████████████████████████████████| 15/15 [00:25<00:00,  1.73s/it]

Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model
Loaded LightGlue model

Now plain DISK

def estimate_H_DISK_smnn(img1, img2):
    device = torch.device('cpu')
    num_features = 2048
    disk = KF.DISK.from_pretrained("depth").to(device)
    timg1 = K.image_to_tensor(img1, False).float()
    if timg1.shape[1] == 1:
        timg1 = K.color.grayscale_to_rgb(timg1)
    timg1 = K.geometry.resize(timg1, (600, 800), antialias=True).to(device)
    timg2 = K.image_to_tensor(img2, False).float()
    if timg2.shape[1] == 1:
        timg2 = K.color.grayscale_to_rgb(timg2)
    timg2 = K.geometry.resize(timg2, (600, 800), antialias=True).to(device)

    features1 = disk(timg1, num_features, pad_if_not_divisible=True)[0]
    features2 = disk(timg2, num_features, pad_if_not_divisible=True)[0]

    kps1, descs1 = features1.keypoints, features1.descriptors
    kps2, descs2 = features2.keypoints, features2.descriptors

    dists, idxs = KF.match_smnn(descs1, descs2, 0.98)
    idxs = idxs.detach().cpu().numpy()

    src_pts = kps1.detach().cpu().numpy()[idxs[:,0]].reshape(-1,2)
    src_pts[:, 0] *= (img1.shape[1] / float(timg1.shape[3]) )
    src_pts[:, 1] *= (img1.shape[0] / float(timg1.shape[2]) )

    dst_pts = kps2.detach().cpu().numpy()[idxs[:,1]].reshape(-1,2)
    dst_pts[:, 0] *= (img2.shape[1] / float(timg2.shape[3]) )
    dst_pts[:, 1] *= (img2.shape[0] / float(timg2.shape[2]) )
    try:
        H, _ = cv2.findHomography(src_pts, dst_pts, cv2.USAC_MAGSAC, 0.5, 0.999, 100000)
    except:
        H = np.eye(3)
    if H is None:
        H = np.eye(3)
    return H


Hs_plain = []

dset = EVDDataset('.EVD',  download=True)
for pair_dict in tqdm(dset):
    with torch.inference_mode():
        Hs_plain.append(estimate_H_DISK_smnn(pair_dict['img1'],
                                     pair_dict['img2']))

result_dict_plain, thresholds = evaluate_Hs(Hs_plain)

100%|███████████████████████████████████████████| 15/15 [00:17<00:00,  1.16s/it]

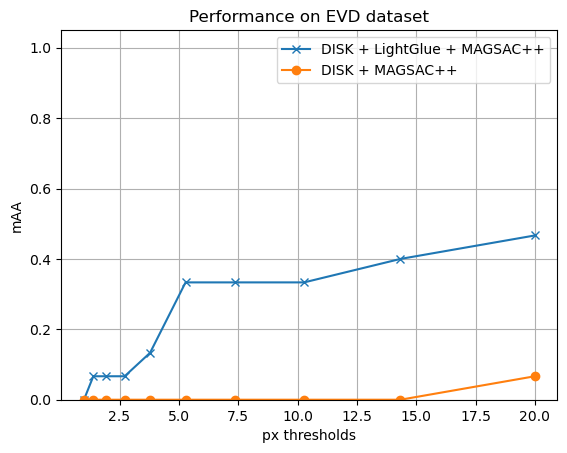

plt.figure()
plt.plot(thresholds, result_dict['average'], '-x')
plt.plot(thresholds, result_dict_plain['average'], '-o')

plt.ylim([0,1.05])
plt.xlabel('px thresholds')
plt.ylabel('mAA')
plt.title('Performance on EVD dataset')
plt.grid(True)
plt.legend(['DISK + LightGlue + MAGSAC++', 'DISK + MAGSAC++'])
